Flexible Conveyor Belt
Brand Name: Tianou
Model Number: Conveyor Belt
Material: Rubber
Fabric structure warp: Polyester
Key Attributes
Industry-specific attributes
Processing Service: Moulding, Cutting
Other attributes
|
Place of Origin |
Zhejiang, China |
|
Brand Name |
Tianou |
|
Model Number |
Conveyor Belt |
|
Material |
Rubber |
|
Fabric structure warp |
Polyester |
|
Degree |
40 |
|
Thickness |
6mm-30mm |
|
Belt width |
300-2000mm |
|
Length |
15-590 Inch |
|
Material Feature |
Heat Resistant Anti-tear elongation |
|
Applicable Industries |
Retail, Construction works , Energy & Mining |
|
Edge |
Mining Cut Edge and Mold Edge |
|
Dimension(L*W*H) |
Size customization |
Packaging and delivery
|

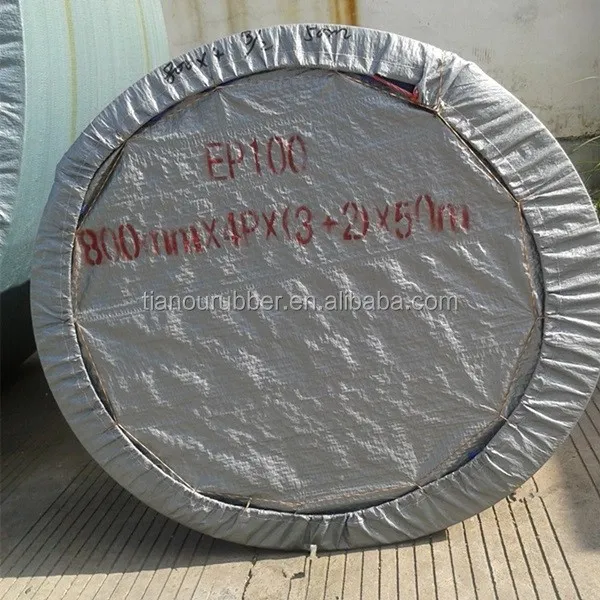

Packaging Details |
PP bag, carton |
|
Port |
Ningbo |
Attribute-list
Supply Ability: 30000 Piece/Pieces per Month
Lead time
|
Quantity (meters) |
1 - 120 |
121 - 500 |
501 - 1000 |
> 1000 |
|
Lead time (days) |
15 |
30 |
45 |
To be negotiated |
Product Descriptions
Cotton Conveyor Belt
Cotton canvas woven by cotton fibers both in warp and in weft, its elongation is relatively low. It is good in mechanical fastening and adhesion with rubber. Converyor belt has relativly small deformation under high tempe rature conditions. It is suitable for short distance and light-load transportation of materials.

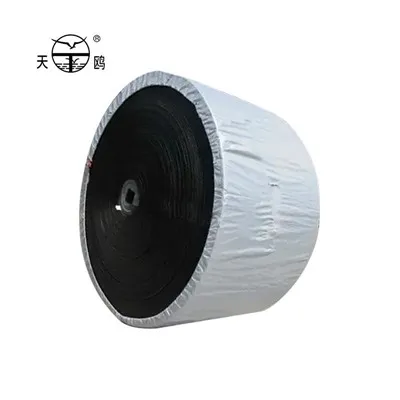

Polyester Cotton Conveyor Belt
Is woven by pilyestercotton fibers in warp and cotton fibers in welf. Its obviouslly better than those of cotton conveyor belt, especially the belt body is thinner and lighter, the belt has anti shock resistance it reduce energy and material consumpition for users. It's suitable the idea selection for medium, short-distance and medium-load transporlation of materials.
Product Characteris
Cotton canvas woven by cotton fibers both in warp and in weft. its elongation is relatively low. It is good 1n mechanical fastening and adhesion with rubber. Converyor belt has relativly small deformation under high temperature conditions. It is suitable for short distance and light- load transportation of materials. Polyester cotton conveyor belt. and is tension resistant body is woven by pilyestercotton fibers in warp and cotton fibers in welt. Its comprehensive phsical and mechanical characteristics are obviouslly better than those of cotton conveyor belt. especially the belt body is thinner and lighter. the belt has better anti shock resistance and thus it has better performance and can reduce energy and material consumpition for users. It's suitalethe idea selection for medium, short - distance and medium-load transporlatron of materials.
Product Specifications
|
Fabric |
ply thickness |
Strength |
series |
N/mm |
Cover |
thickness |
||
|
specs |
mm/p |
2 ply |
3 ply |
4 ply |
5 ply |
6 ply |
upper |
lower |
|
NN-100 |
0.70 |
200 |
300 |
400 |
500 |
600 |
||
|
NN-125 |
0.75 |
250 |
375 |
500 |
625 |
750 |
||
|
NN-150 |
0.80 |
300 |
450 |
600 |
750 |
900 |
||
|
NN-200 |
0.90 |
400 |
600 |
800 |
1000 |
1200 |
||
|
NN-250 |
1.10 |
500 |
750 |
1000 |
1250 |
1500 |
1.5~8 |
0~4.5 |
|
NN-300 |
1.25 |
900 |
1200 |
1500 |
1800 |
|||
|
NN-350 |
1.35 |
1050 |
1400 |
1750 |
2100 |
|||
|
NN-400 |
1.70 |
1600 |
2000 |
2400 |
||||
|
NN-500 |
1.80 |
2000 |
2500 |
3000 |
Adhesion and elongation of the belt
|
Adhesive strength |
Elognation |
||||
|
Belt |
Between piles |
between rubber carcass |
N/mm |
Longitudinal elongation |
Longitutional |
|
Carcass |
N/mm |
Rubber thickness <=1.5mm |
Rubber thickness >1.5mm |
at break%>= |
at reference load%<= |
|
Nylon canvas |
>=4.5 |
>=3.2 |
>=3.5 |
10 |
4 |
Cover properties of the belts
|
Cover |
Tensile strength |
>= |
Elongation >= |
Abrasion <= |
Change Rate of tensile strength |
|
Grade |
Mpa |
kgf / cm |
% |
mm |
and elongation after aging |
|
H |
24 |
240 |
450 |
120 |
-25~+25 |
|
D |
18 |
180 |
400 |
100 |
-25~+25 |
|
L |
15 |
150 |
350 |
200 |
-25~+25 |

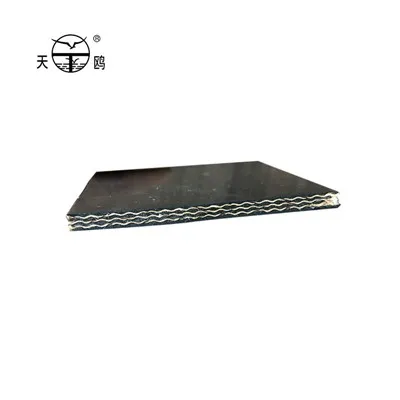

Fabric Spec

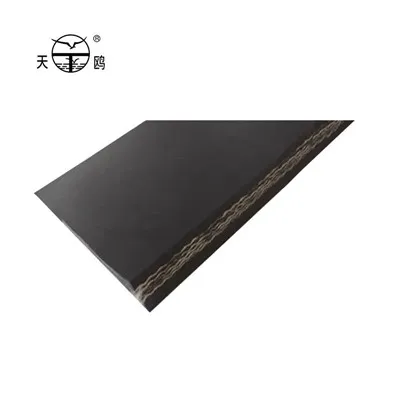

Cotton: cc-56
Polyester cotton: T.C-56
Width(mm): 300-2000
Company Profile
TAIZHOU TIANOU RUBBER CO.,LTD
Tianou Rubber Co., Ltd is located in Tiantai County, Taizhou City, Zhejiang Province, and are specialized in manufacturing V-belt, flat belt and conveyor belt. With an experienced and professional team, we have exported our products to many countries and regions all over the world, especially Southeast Asia, the Middle East, South America, North America, Africa, etc. Our products enjoy a good reputation among our customers. We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
FAQ
Q1: Can I order a small quantity of samples?
Yes. We can offer you samples at the bulk prices and send them by DHL, TNT. EMS, FEDEX or others according to your requirements.
Q2: How could I know whether the belt fits for my machine?
You can tell me which product you are interested in, and I will give you its main sizes. You can also send me drawings or samples, and then we will put them into production at your requests.
Q3: I want to find a supplier for my new products. Can you help me?
Yes. Kindly offer me your drawings or samples for analysis.
Q4: How long does it take to make a new product?
Usually 10-15 days for drawings and 7 days for samples.
Q5: Can we stencil (or print ) our logo or company name on the belt or package?
Yes. Please inform us your logo or design before mass production.
Q6: What is your payment term?
T/T 30% deposit and T/T 70% balance before shipment.
Q7: What is your quotation?
We will give you FOB price. But EXW, CIF and CNF can also be given according to your demands.
Q8: Can you produce other types?
Yes, just send us the print and tell me your request.
Q9: How soon can you deliver the goods.
The soonest lead time is 10 days, depends on the quantity.
Q10: What's the warranty term?
We offer 12 months warranty.
